EV Battery Tray Inspection

Inspect each part you manufacture – not only for a handful of critical features – but for ALL features that you need to have control over.

Ensure 100% part conformity, avoid warranty claims, and cut the cost of quality.

TALK TO AN EXPERT
Application Images_Low Res_Light (7)

1200+

# of Inspected Features

30 seconds

Inspection Cycle Time

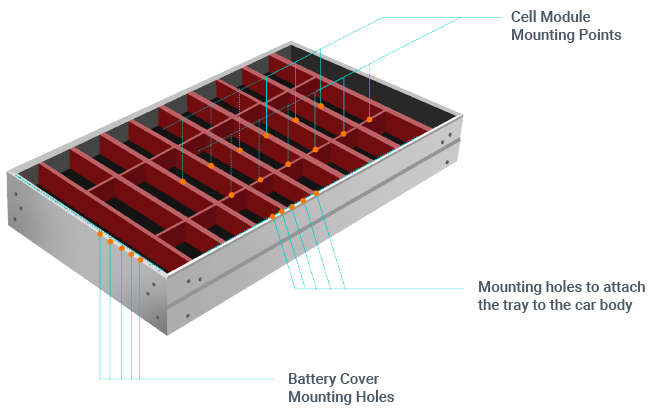

Example Inspection Points

• 3D location (x, y, z) of cell module mounting points
• 3D location of mounting holes to attach the tray to the car body
• 3D location of mounting holes for the battery cover
• Distances between certain holes
• Presence check for nuts and bolts

100% x 100% IN-LINE INSPECTION

Stop Sampling. Take Full Control over Quality.

Achieve superior control over both part quality and process capability throughout the entire production lifecycle. By inspecting all features on each part, 100% x 100% in-line inspection unlocks brand new capabilities to lower parts-per-million and eliminate sorting costs.

  • Safe Quality Containment

  • Real-time Process Control

  • Virtual Sorting

Analyse inspection results

Ensure 100% Delivery Quality

Detect out-of-spec parts as soon as they are produced to safely contain them within your facility. Avoid OEM line shutdowns and expensive warranty claims. Build a reputation for 100% delivery quality.

Result_Viewer_2

Monitor and Analyze Process Capability in Real-Time

Monitor your process performance for each feature, component, and production cell in real-time. Utilize deep-dive data to reveal complex variation patterns and trends. Prevent scrap and enable advanced closed-loop manufacturing processes.

Pattern_editor

Inspect and Sort Parts Fully Virtually

Inspect new inspection points even after the parts are shipped by using part digital twins instead of the physical parts. Eliminate manual sorting and conduct sorting activities fully virtually.

Any Questions? Talk to an Expert.

Our team of experts and engineers are here to help. We can answer any questions you have, ranging from product specifications and technology to your inspection requirements and measurement plans. Feel free to drop us a message!
