Inspect Automotive Parts in 30 Seconds

The Mapvision Q-Series integrates dimensional measurement, presence check, and weld seam inspection into one multi-camera system. Utilizing advanced image processing algorithms, it inspects complex parts in 30 seconds. Data visualization and robust traceability capabilities enhance quality control and process optimization.

Mapvision Q-Series Website-01-1

TECHNOLOGY
How It Works

  • Capture images

  • Save to database

  • Inspect

  • Analyze & manage

  • Retroactive Inspection

MicrosoftTeams-image (4)

Capture Images

An extensive set of fixed cameras captures images of the whole inspection volume and features from multiple angles – providing a complete model of the part and all the inspection points in detail within a few seconds.

Save Images

Save to Database

Images are saved to the image database of the measurement unit to be passed to Mapvision's inspection algorithms.

Inspect-1

Inspect the Images

Mapvision's powerful machine vision and photogrammetry algorithms conduct the geometric measurements and presence check of the features directly on the images – removing the need for the physical part once the images are collected

Analyse inspection results

Analyze and Manage

Inspection results are made available in real-time to conduct deep-dive analysis. Users can adjust the measurement program, add new inspection points, and even manage the whole process remotely at any point.

Retrospective inspection

Retroactive Inspection and Virtual Sorting

Users can go back to the database to inspect completely new features or to re-run inspection for modified specifications even if the parts are not physically available anymore in their premises since all inspections are conducted on the images collected from the whole volume of the part.

Fast Inspection-52
1200+ Inspection Points in 30 Seconds

Inspect 1200+ inspection points in 30 seconds – empowered by Mapvision’s patented machine vision and photogrammetry algorithms.

Data Analytic Icons-36
3D Geometric Measurement and Presence Check

Collect GD&T calculations, 3D position measurements, and presence check results in the same inspection time for each part and all features.

Data Analytic Icons-28
Eliminate CMM
Correlation Studies

Eliminate your dependence on CMMs, correlation studies, and reference parts. Use the 3D CAD model of the part as a measurement reference and achieve CMM-level accuracy without the hassle.

Data Analytic Icons-23
Safe Quality
Containment

Detect every out-of-spec part as soon as they are produced. Deliver only OK parts, avoid OEM line shutdowns, and eliminate expensive warranty claims. Eliminate the need for manual internal sorting and reduce the cost of quality while building a reputation for 100% delivery performance.

Data Analytic Icons-17
Real-Time
Process Analytics

Monitor your process performance for each feature, component, and production cell in real time. Reduce internal PPMs, cut downtime, and increase OEE by identifying process deviations and conducting root causes without delay. Cut rework with sustained process stability.

Data Analytic Icons-31
Advanced
Traceability

Associate each part produced with its whole production history. Create a complete memory of your production for advanced part traceability and retroactive inspection. Eliminate OEM sorting, avoid batch recalls, and measure parts that are no longer physically available on your premises.

100% In-line Inspection in 30 Seconds

The Mapvision Q-Series enables 100% in-line inspection within the production TAKT time, even when inspecting a thousand of features. The whole process—from capturing images to inspecting and delivering results—takes only 30 seconds, achieving an efficiency level that traditional inspection systems cannot reach.

System Difference no Title-17

Loading Options

SINGLE DOOR



NOPADDING Single Door Standard






DOUBLE DOOR



Double Door Standard

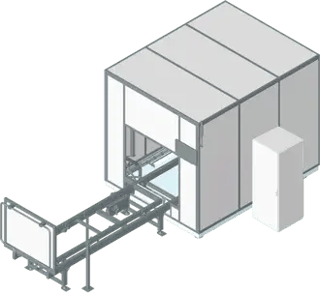

SINGLE SHUTTLE



Single Shuttle

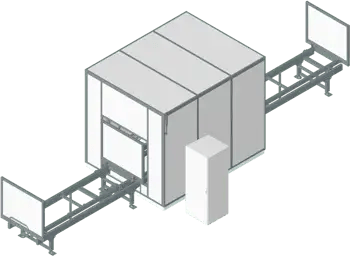

DOUBLE SHUTTLE



Double Shuttle

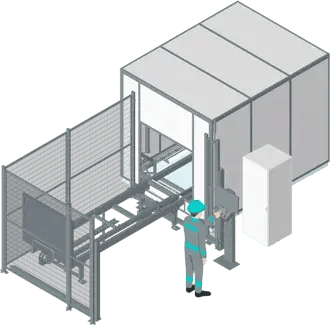

MANUAL LOADING



Manual Loading

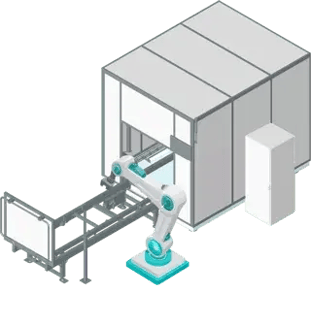

AUTOMATIC LOADING



Automatic Loading2



System Dimensions

  • S to Standard System Sizes

  • W to 5W System Sizes

  • L to Max System Sizes

  • Custom System Sizes

Single Door Standard-1

SYSTEM SIZE | S
Length (mm): 1670
Width (mm): 2220
Height (mm): 2610

SYSTEM SIZE | STANDARD WIDE
Length (mm): 2220
Width (mm): 2840
Height (mm): 2610

SYSTEM SIZE | STANDARD LONG
Length (mm): 2840
Width (mm): 2220
Height (mm): 2610

Single Door Wide

SYSTEM SIZE | W
Length (mm): 2840
Width (mm): 2400
Height (mm): 2610

SYSTEM SIZE | 2W
Length (mm): 2840
Width (mm): 2580
Height (mm): 2610

SYSTEM SIZE | 3W
Length (mm): 2840
Width (mm): 2760
Height (mm): 2610

SYSTEM SIZE | 4W
Length (mm): 2840
Width (mm): 2940
Height (mm): 2610

SYSTEM SIZE | 5W
Length (mm): 2840
Width (mm): 3120
Height (mm): 2610

QualityGate_6200_ideamalli_isometric-3

SYSTEM SIZE | L
Length (mm): 3220
Width (mm): 2220
Height (mm): 2610

SYSTEM SIZE | 2L
Length (mm): 3600
Width (mm): 2220
Height (mm): 2610

SYSTEM SIZE | MAX
Length (mm): 3600
Width (mm): 3120
Height (mm): 2610

CustomSized-1



Custom Sized System

Through our customization program, you can get both custom-sized inspection systems (larger and smaller). We have already created special versions of Mapvision inspection systems for large automotive structures, such as body-in-white, underbodies and EV battery trays and more.

USE CASES

From Structural Parts to EV
Battery Modules

Inspects complex parts of all sizes in 30 seconds.

We provide inspection systems in various sizes with unique loading options. We've developed specialized Mapvision inspection systems for large automotive parts like body-in-white and underbodies, and designed numerous systems integrated with conveyor belts or AGVs.

EV Battery Tray Inspection

EV BATTERY TRAY

1200+
# of Inspection Features


30 seconds
Inspection Time

EV Battery Module Inspection

6

800+
# of Inspection Features


35 seconds
Inspection Time

Cross Car Beam Inspection

8

200+
# of Inspection Features


30 seconds
Inspection Time

Subframe Inspection

9

150+
# of Inspection Features


30 seconds
Inspection Time

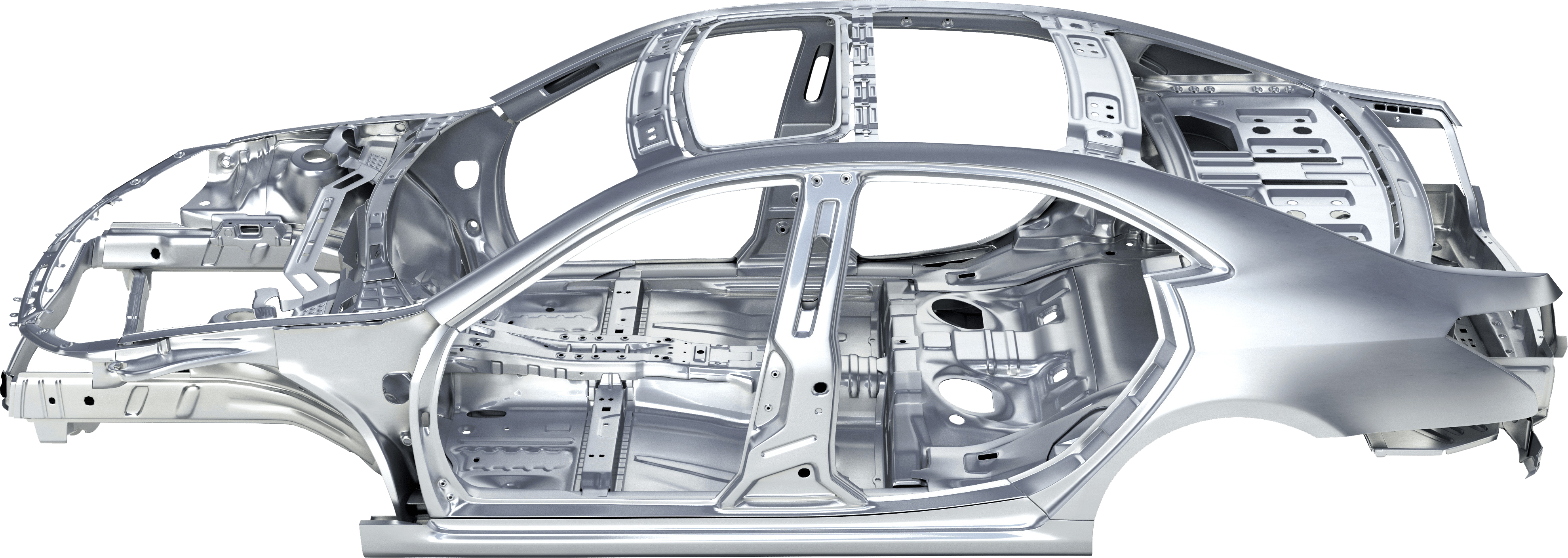

Body-in-White (BiW) Inspection

4

500+
# of Inspection Features


35 seconds
Inspection Time
